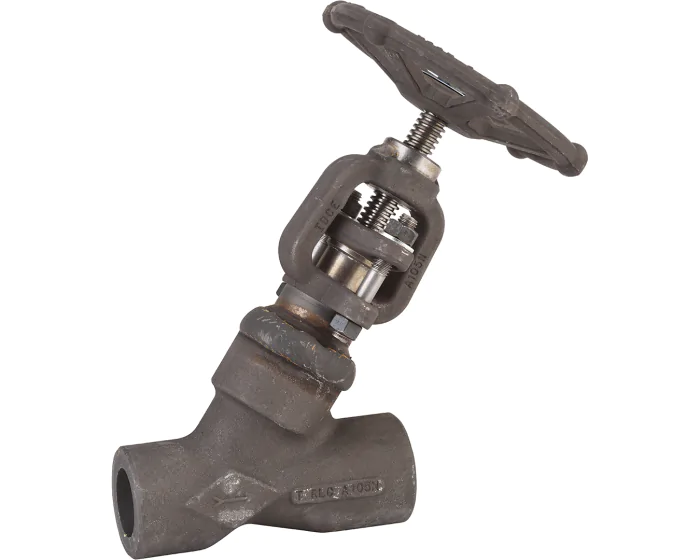

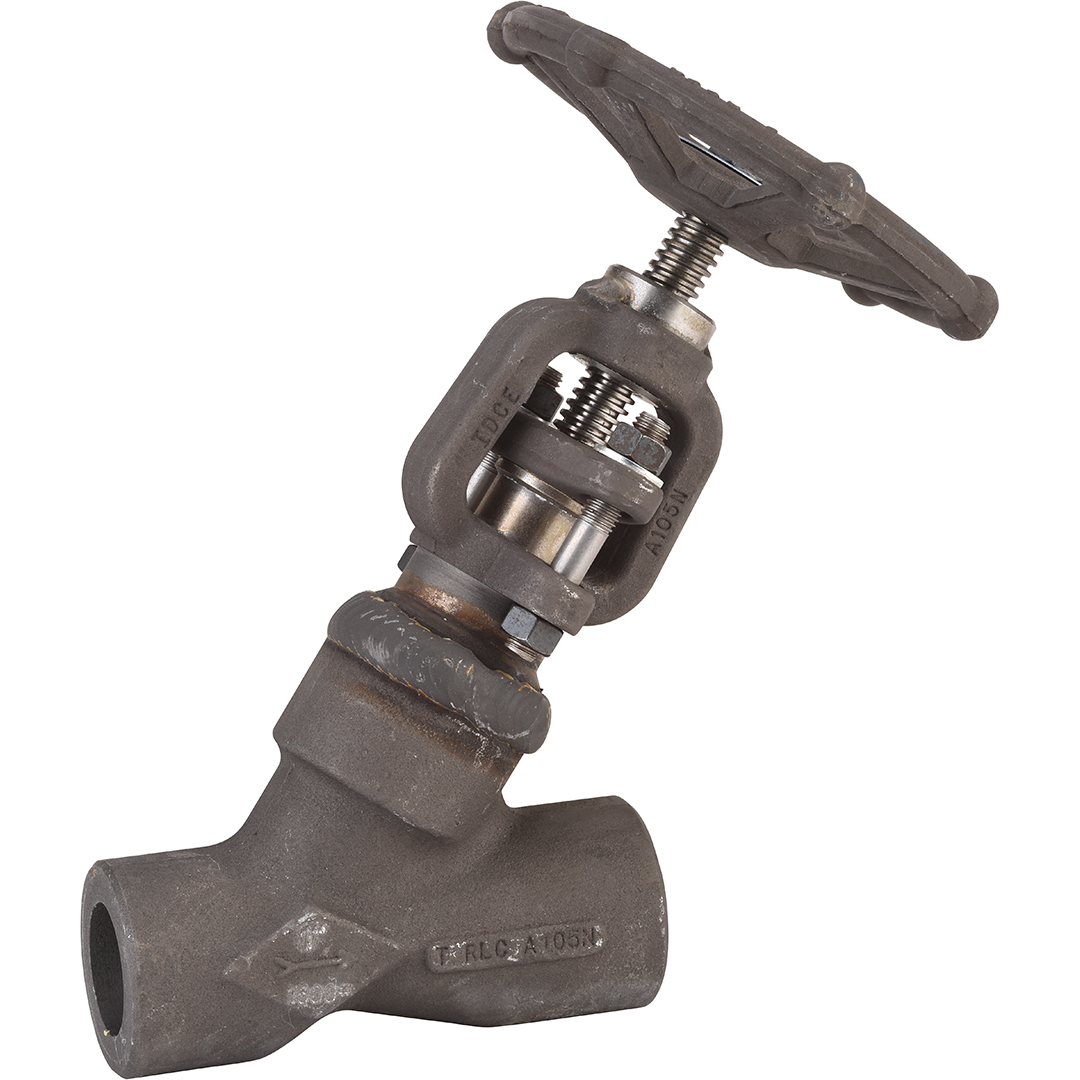

The globe valve series 405 of forged steel with welded bonnet, plug and seat in stellited stainless steel TRIM 5, full bore, welding SW, Class 1500, slanted seat for the oil industry.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 5 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Welded |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 110.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 3.9 |
| Body material | Carbon steel ASTM A105 N |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 255 |
| Connections | Welding SW |
| Seats | Stellite Gr.6 |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A276 type 410 Stellited |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A105 N Full DN15 - 1/2'' | 405015 | S1007475 |
€147.11
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Full DN20 - 3/4'' | 405020 | S1007476 |
€213.83
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Full DN25 - 1'' | 405025 | S1007477 |
€222.06
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Full DN40 - 1''1/2 | 405040 | S1007478 |
€538.37
(excl. btw)
|
add to cart |
